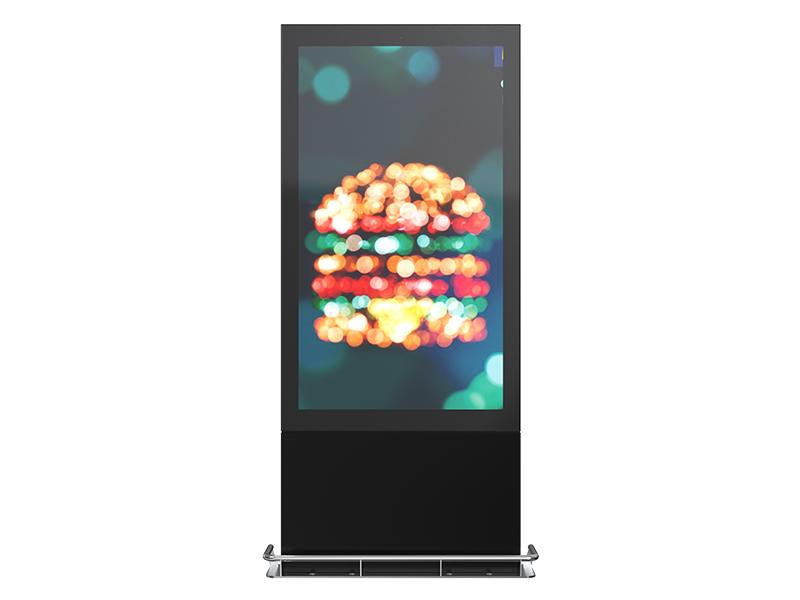

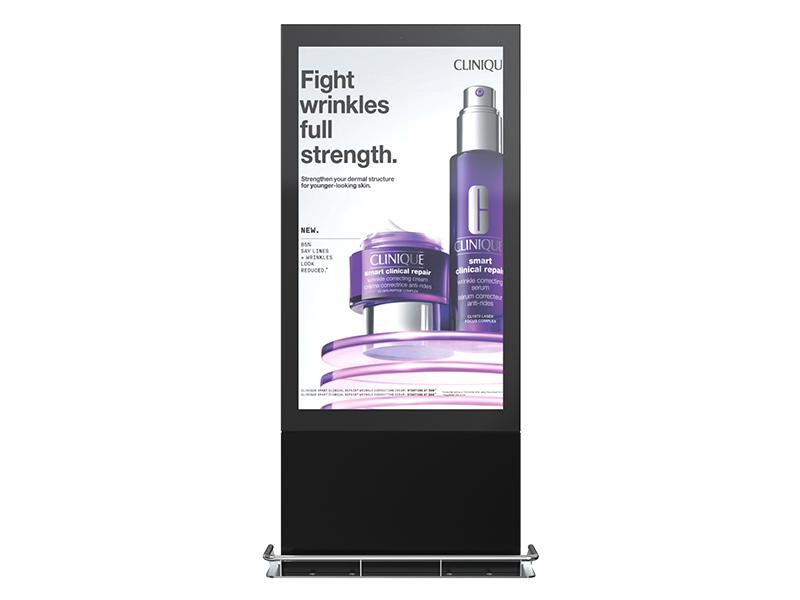

The outdoor kiosk series adopts outdoor industrial panels that are visible in sunlight, and the brightness will automatically adjust according to the ambient light.

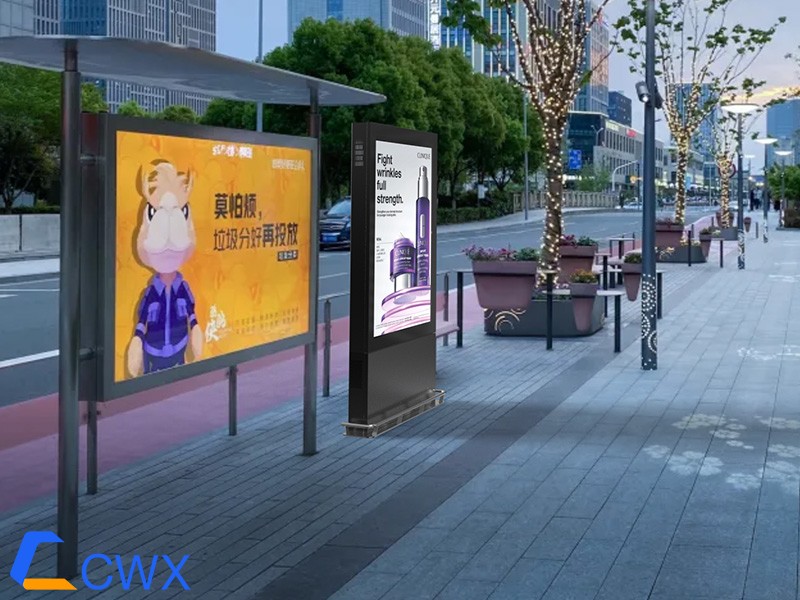

This series provides universal designs suitable for a wide range of commercial applications. It is a multifunctional optimization solution designed specifically for visibility under various weather conditions and can be used for advertising, information display, and even menu boards. The perfect idea to attract more customers is to install it in McDonald's restaurants, coffee shops, commercial centers, and theme parks.
| MODEL | CWX550F | |
| PANEL | LCD Panel Size | 55 inch |
| Native Resolution | 1920×1080 | |
| Brightness | 3000 nits | |
| Color Depth | 16.7M | |
| Contrast Ratio | 1200:1 | |
| Response Time (Typ.) | 8s | |
| Viewing Angle | 178/178 | |
| Light Lifetime (Typ.) | 50000 Hours | |
| Viewable With Polarized Lenses | Yes | |
| POWER | Power Supply | AC 100-240V 50/60Hz |
| Rated Voltage | AC 110V/230V | |
| Power Consumption (Max.) | 160W | |
| Power Saving Mode | ≤0.5W | |
| AC Out | N/A | |
| MECHANICAL SPECS | Bezel Width (T/B/L/R) mm | 100.7/100.7/81.8/81.8 |
| Protection Glass | Yes (6T Tempered Glass IK10) | |
| Cabinet Color | Default Black | |
| Monitor Dimension (LxHxD) mm | 2200×844×180 | |
| Monitor Weight | 120kg | |
| Orientation | Portrait | |
| VESA Mounting (LxH) mm | N/A | |
| Carrying Handles | Yes | |
| FEATURE | Language | Default English |
| Support SNMP (Up to V3.0) | N/A | |
| lmage Retention Protection | Yes | |
| Auto Orientation Sensor | N/A | |
| Ambient Light Sensor | N/A | |
| Power On/Off Scheduling | Yes | |
| OSD Menu Rotation | Yes | |
| INPUT | HDMI 2.0(HDCP 2.3) | HDMI input 4K 30/60Hz |
| DisplayPort 1.2 | DP input 4K 60Hz | |
| USB 3.0 | USB 3.0×2 | |
| Micro SD Slot | Supports up to 32GB | |
| OUTPUT | Audio | Stereo Mini Jack |
| EXTERNAL CONTROL | RS-232 | RS232 (Option) |
| RJ-45 | RJ45×1(In/Out) | |
| ETK Port ( Thermal) | N/A | |
| ESK Port (IR, Ambient) | IR control | |
| ENVIRONMENT | Operating Temperature. | -20℃~ 60℃ |
| Storage Temperature | -30℃~70℃ | |
| Humidity | 10-95%(Non-condensing) | |
| IP Rate | IP66 | |
| INTERNAL PLAYER | Operating System | Android 11.0 or above |
| Processor | Quad-core Cortex-A55 | |
| Clock Speed | Up to 2.0GHz | |
| Main Memory lnterface | 2GB LPDDR4 1.5GHz 64bit | |
| Grapics | Supports OpenGL ES | |
| Storage | 16GB | |
| Multimedia | 4KP60 H.265/H.264/VP9 video decoder 1080P60 H.264/H.265 video encode |
|
| Wireless Function | Wi-Fi 2.4/5.0GHz 802.11 a/b/g/n/ac/ax | |
| CERTIFICATION | CE/RoHS/FCC | |
