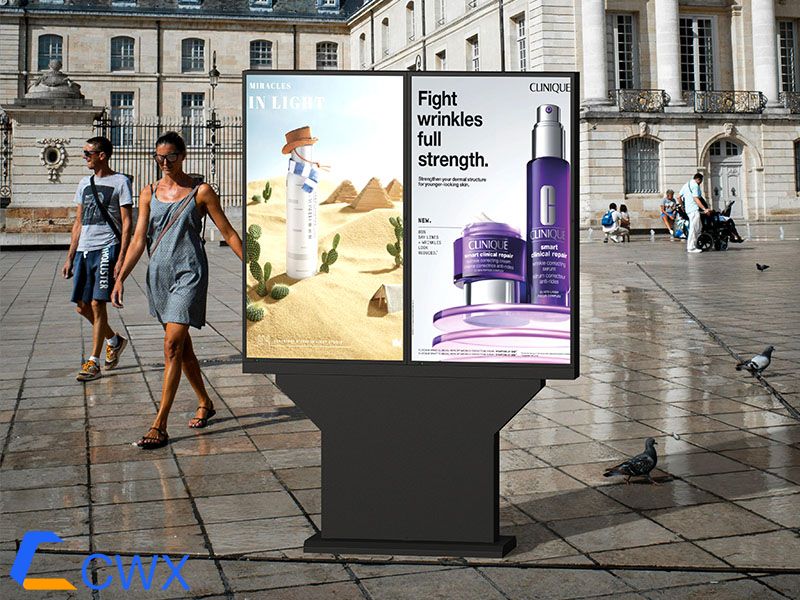

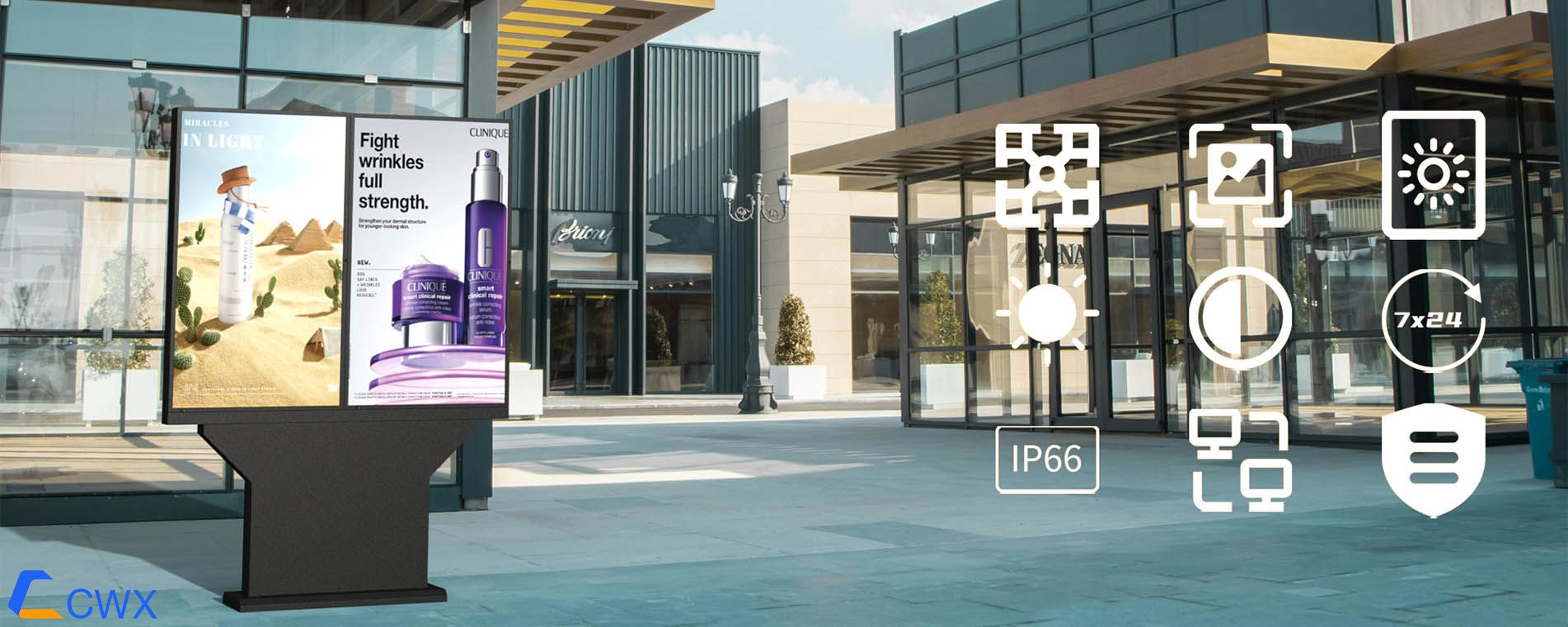

The 2-screen outdoor advertising machine can be widely used in outdoor advertising broadcasting, outdoor public information release, outdoor media communication, touch interactive query and other fields, providing more diversified communication methods.
Advantage
1. Provides a wider viewing angle and more vivid and vibrant images.
2. By increasing the number of screens, richer content can be displayed.
3.Supports multiple forms of playback and a variety of multimedia file formats.
4.Provide more diverse communication methods.

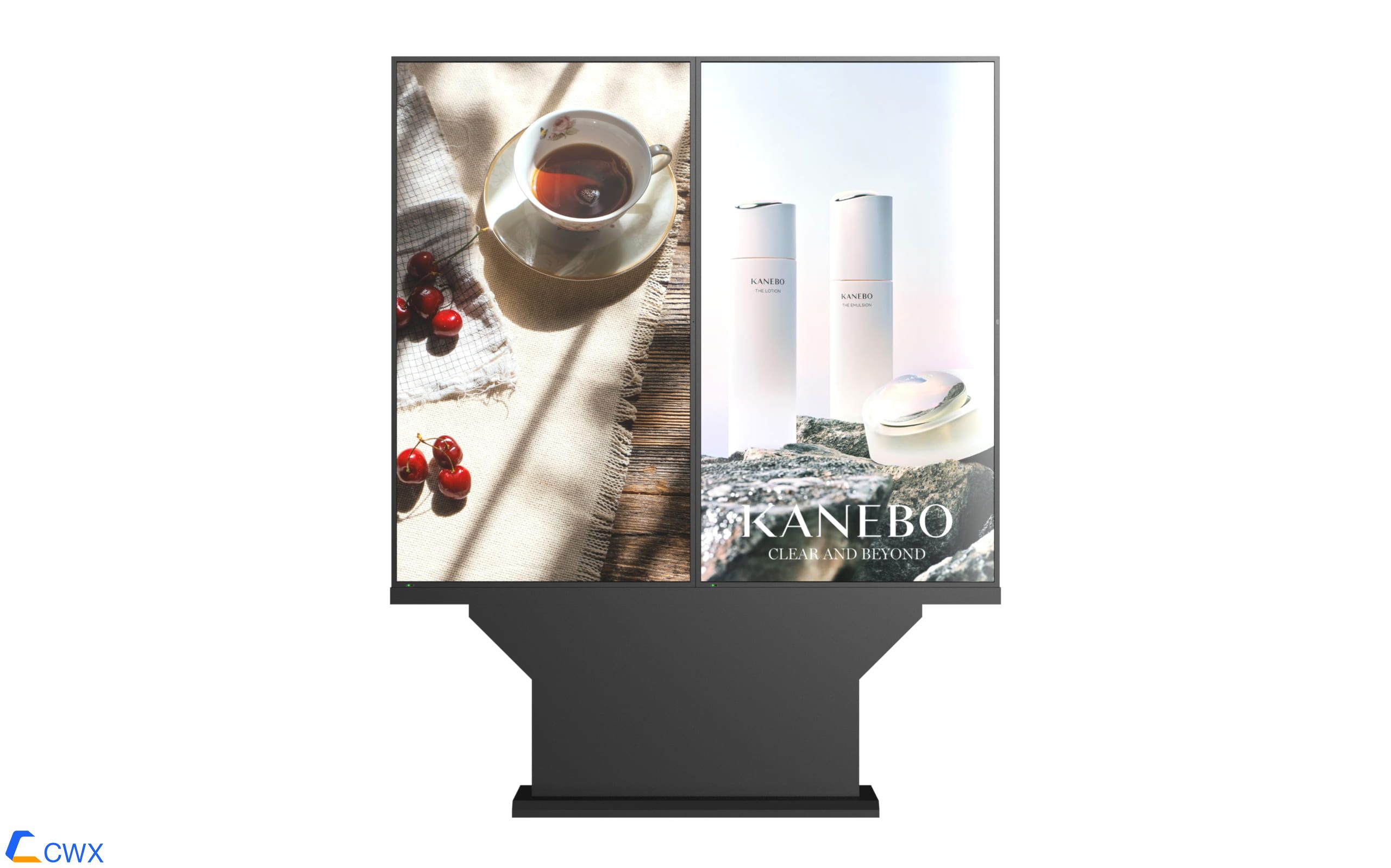

The single screen size of this product is 55 inches, and customers can customize 2-screen outdoor advertising machines and design bases of various sizes and specifications according to their own needs.
Individual screen parameters.
|
|
||
|
MODEL |
750SL-Ⅱ |
|
|
|
||
|
PANEL |
LCD Panel Size |
75 inch |
|
Native Resolution |
3840×2160 |
|
|
Brightness |
3000 nits |
|
|
Color Depth |
16.7M |
|
|
Contrast Ratio |
1200:1 |
|
|
Response Time (Typ.) |
8s |
|
|
Viewing Angle |
178/178 |
|
|
Light Lifetime (Typ.) |
50000 Hours |
|
|
Viewable With Polarized Lenses |
Yes |
|
|
|
||
|
POWER |
Power Supply |
AC 100-240V 50/60Hz |
|
Rated Voltage |
AC 110V/230V |
|
|
Power Consumption (Max.) |
1100W |
|
|
Power Saving Mode |
≤0.5W |
|
|
AC Out |
Yes |
|
|
|
||
|
MECHANICAL SPECS |
Bezel Width (T/B/L/R) mm |
20/20/20/20 |
|
Cabinet Color |
Default Black |
|
|
Product Dimensions (LxHxD) mm |
1940.5×2400.0×145.0 |
|
|
Monitor Weight |
140KG |
|
|
Orientation |
Portrait |
|
|
VESA Mounting (LxH) mm |
600×600 |
|
|
Carrying Handles |
Yes |
|
|
|
||
|
FEATURE |
Language |
Default English |
|
Support SNMP (Up to V3.0) |
N/A |
|
|
lmage Retention Protection |
Yes |
|
|
Auto Orientation Sensor |
N/A |
|
|
Ambient Light Sensor |
Yes |
|
|
Power On/Off Scheduling |
Yes |
|
|
OSD Menu Rotation |
Yes |
|
|
|
||
|
INPUT |
HDMI 2.0(HDCP 2.3) |
HDMI input 4K 30/60Hz |
|
Display Port 1.2 |
DP input 4K 60Hz |
|
|
USB 3.0 |
USB 3.0×2 |
|
|
Micro SD Slot |
Supports up to 32GB |
|
|
|
||
|
OUTPUT |
Audio |
Stereo Mini Jack |
|
|
||
|
ENVIRONMENT |
Operating Temperature. |
-10℃~45℃ |
|
Storage Temperature |
-30℃~70℃ |
|
|
Humidity |
10-95%(Non-condensing) |
|
|
IP Rate |
IP66 |
|
|
|
||
|
INTERNAL PLAYER |
Operating System |
Android 11.0 or above |
|
Processor |
Quad-core Cortex-A55 |
|
|
Clock Speed |
Up to 2.0GHz |
|
|
Main Memory lnterface |
2GB LPDDR4 1.5GHz 64bit |
|
|
Grapics |
Supports OpenGL ES |
|
|
Storage |
16GB |
|
|
Multimedia |
4KP60 H.265/H.264/VP9 video decoder |
|
|
Wireless Function |
Wi-Fi 2.4/5.0GHz 802.11 a/b/g/n/ac/ax |
|
|
|
||
|
CERTIFICATION |
CE/RoHS/FCC |
|
