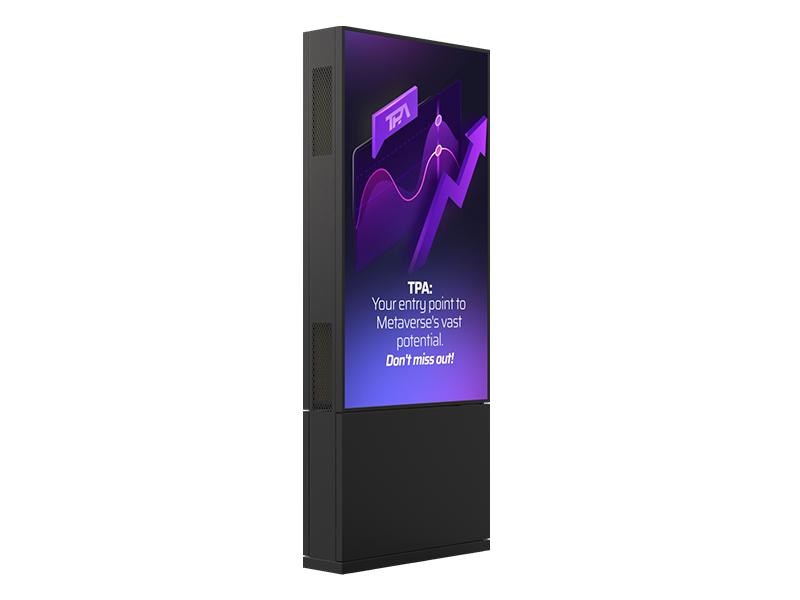

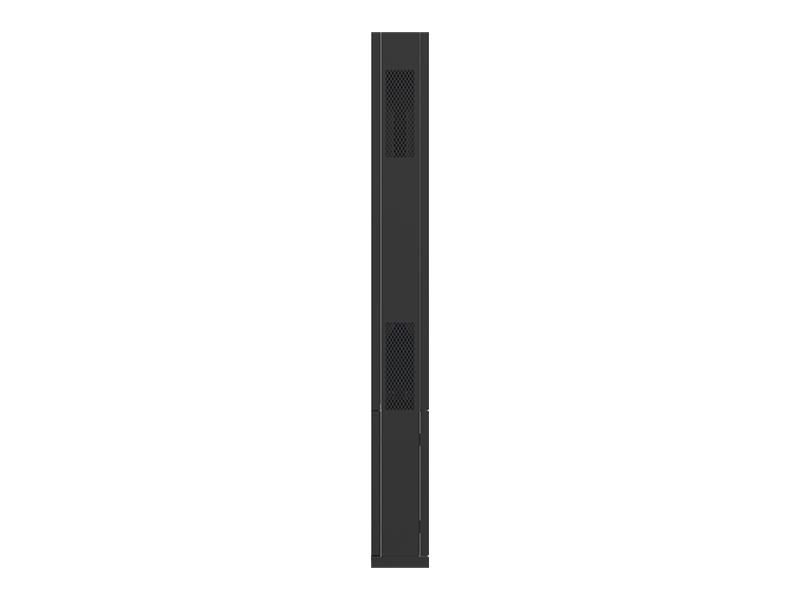

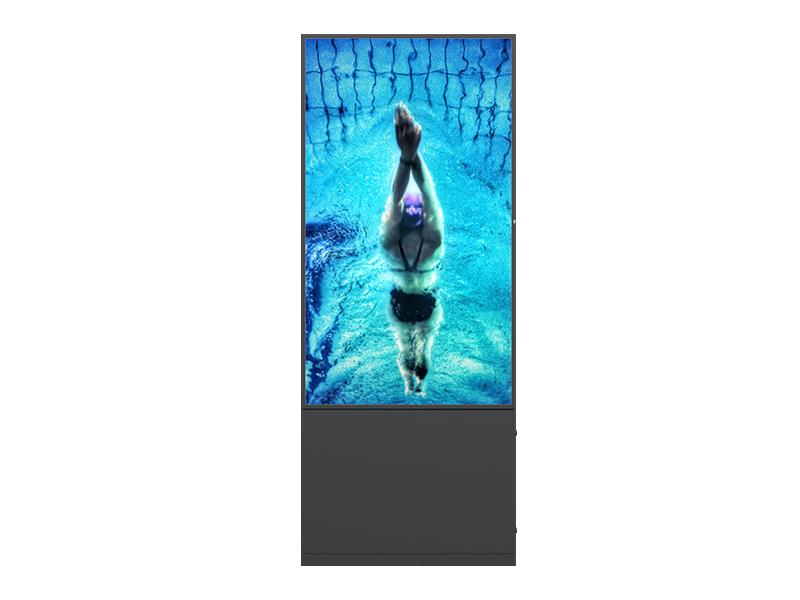

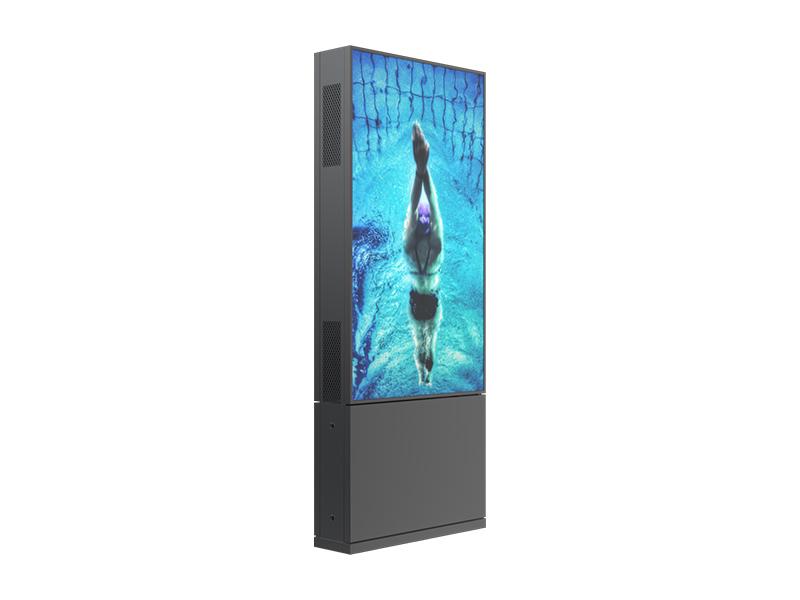

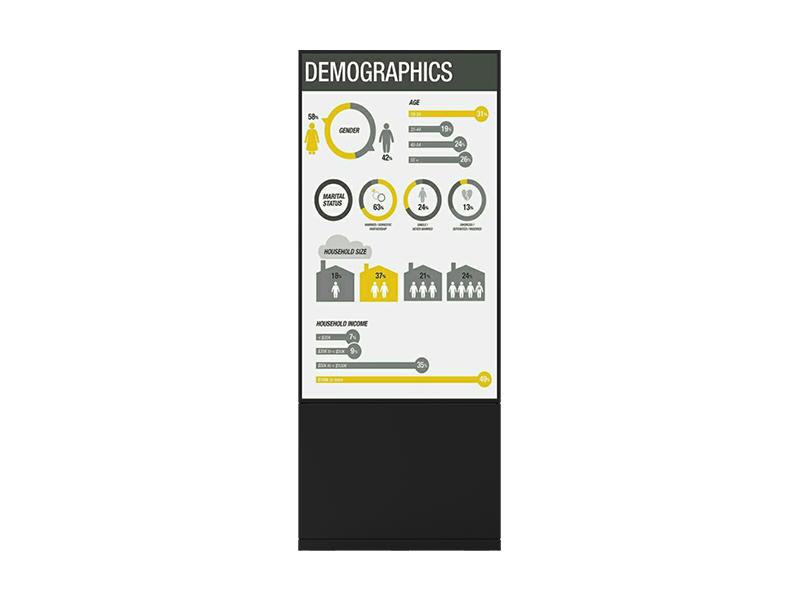

75" Floor Standing Double sided Narrow Frame BUS digital signage

75" Floor Standing Double sided Narrow Frame BUS digital signage

Products Features

The outdoor kiosk series adopts outdoor industrial panels that are visible in sunlight, and the brightness will automatically adjust according to the ambient light.

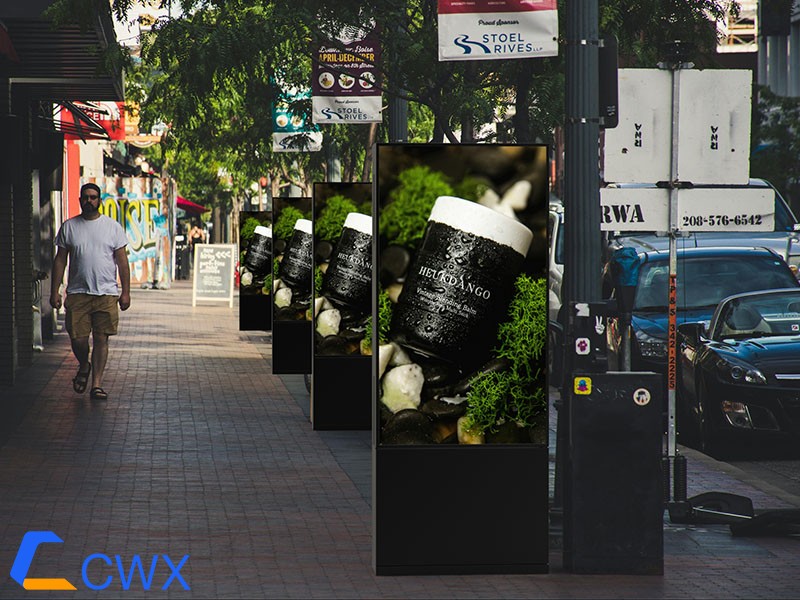

This series provides universal designs suitable for a wide range of commercial applications. It is a multifunctional optimization solution designed specifically for visibility under various weather conditions and can be used for advertising, information display, and even menu boards. The perfect idea to attract more customers is to install it in McDonald's restaurants, coffee shops, commercial centers, and theme parks.



75

                          Advantage



                         1. Lamination: higher color reproduction rate and

                             low power consumption.



                         2. Screen-to-body ratio≥95%



                         3. IP rating: IP66



                         4. Easy maintenance.



                         5. There is no need to replace the dust filter





MODEL CWX750FDⅡ

PANEL LCD Panel Size 75 inch
Native Resolution 3840×2160
Brightness 3000 nits
Color Depth 1.07B
Contrast Ratio 1200:1
Response Time (Typ.) 8s
Viewing Angle 178/178
Light Lifetime (Typ.) 50000 Hours
Viewable With Polarized Lenses Yes

POWER Power Supply AC 100-240V 50/60Hz
Rated Voltage AC 110V/230V
Power Consumption (Max.) 1200W
Power Saving Mode 0.5W
AC Out N/A

MECHANICAL SPECS Bezel Width (T/B/L/R) mm 18/18/18/18
Protection Glass Yes (6T Tempered Glass IK10)
Cabinet Color Default Black
Monitor Dimension (LxHxD) mm 2400×970×260
Monitor Weight 350kg
Orientation Portrait
VESA Mounting (LxH) mm N/A
Carrying Handles Yes

FEATURE Language Default English
Support SNMP (Up to V3.0) N/A
lmage Retention Protection Yes
Auto Orientation Sensor N/A
Ambient Light Sensor N/A
Power On/Off Scheduling Yes
OSD Menu Rotation Yes

INPUT HDMI 2.0(HDCP 2.3) HDMI input 4K 30/60Hz
DisplayPort 1.2 DP input 4K 60Hz
USB 3.0 USB 3.0×2
Micro SD Slot Supports up to 32GB

OUTPUT Audio Stereo Mini Jack

EXTERNAL CONTROL RS-232 RS232 (Option)
RJ-45 RJ45×1(In/Out)
ETK Port ( Thermal) N/A
ESK Port (IR, Ambient) IR control

ENVIRONMENT Operating Temperature. -20~ 60
Storage Temperature -30~70
Humidity 10-95%(Non-condensing)
IP Rate IP66

INTERNAL   PLAYER Operating System Android 11.0 or above
Processor Quad-core Cortex-A55
Clock Speed Up to 2.0GHz
Main Memory lnterface 2GB LPDDR4 1.5GHz 64bit
Grapics Supports OpenGL ES
Storage 16GB
Multimedia 4KP60 H.265/H.264/VP9 video decoder
1080P60 H.264/H.265 video encode
Wireless Function Wi-Fi 2.4/5.0GHz  802.11 a/b/g/n/ac/ax

CERTIFICATION CE/RoHS/FCC
