Professional window digital signage series adopts high brightness panel that are visible in sunlight. And the brightness will be automatically adjusted according to the ambient light.

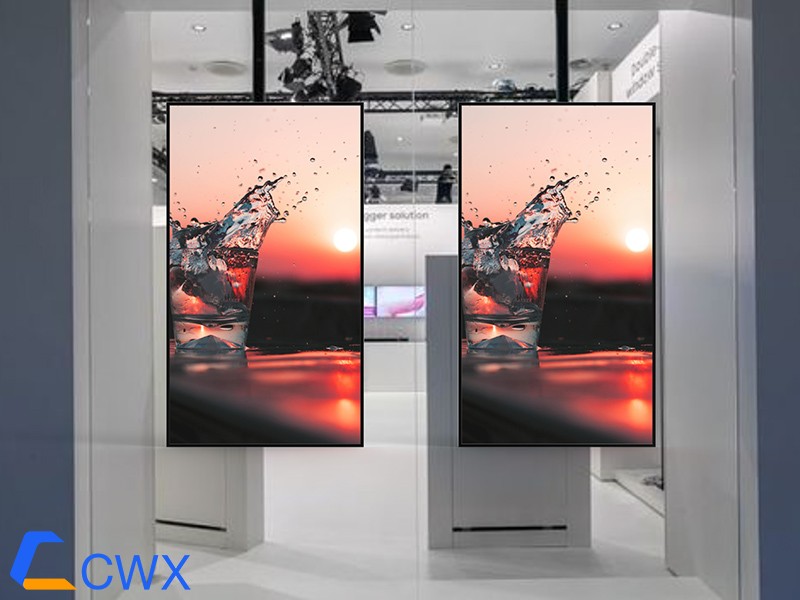

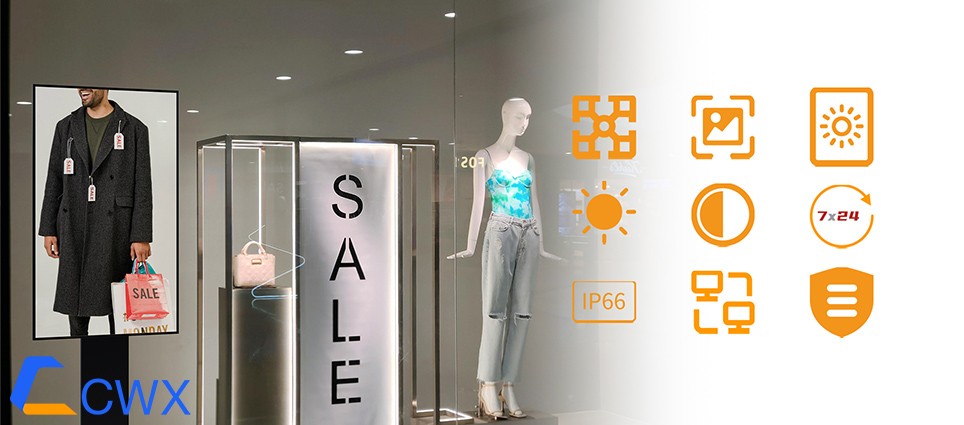

This series provides universal designs suitable for a wide range of commercial purposes. It is designed to be visible under high sunlight conditions and is a multifunctional optimization solution for advertising, information display, and even menu boards. The best way to attract more customers is to install them on the windows of restaurants and shopping centers.
Advantage
1. Lamination: higher color reproduction rate and low power consumption.
2. Screen-to-body ratio≥95%
3. Easy to maintain.
4. No need to replace the dust filter.
| MODEL | CWX550WD | |
| PANEL | LCD Panel Size | 55 inch |
| Native Resolution | 1080×1920 | |
| Brightness | 4000 +1000nits | |
| Color Depth | 1.07B | |
| Contrast Ratio | 1200:1 | |
| Response Time (Typ.) | 8s | |
| Viewing Angle | 178/178 | |
| Light Lifetime (Typ.) | 50000 Hours | |
| Viewable With Polarized Lenses | N/A | |
| POWER | Power Supply | AC 100-240V 50/60Hz |
| Rated Voltage | AC 110V/230V | |
| Power Consumption (Max.) | 300W | |
| Power Saving Mode | ≤0.5W | |
| AC Out | N/A | |
| MECHANICAL SPECS | Bezel Width (T/B/L/R) mm | 16.8/16.8/16.8/16.8 |
| Cabinet Color | Default Black | |
| Monitor Dimension (LxHxD) mm | 720.5×1249.6×120 | |
| Monitor Weight | 40kg | |
| Orientation | Portrait | |
| VESA Mounting (LxH) mm | N/A | |
| Carrying Handles | Yes | |
| FEATURE | Language | Default English |
| Support SNMP (Up to V3.0) | N/A | |
| lmage Retention Protection | Yes | |
| Auto Orientation Sensor | N/A | |
| Ambient Light Sensor | N/A | |
| Power On/Off Scheduling | Yes | |
| OSD Menu Rotation | Yes | |
| INPUT | HDMI 2.0(HDCP 2.3) | HDMI input 4K 30/60Hz |
| DisplayPort 1.2 | DP input 4K 60Hz | |
| USB 3.0 | USB 3.0×2 | |
| Micro SD Slot | Supports up to 32GB | |
| OUTPUT | Audio | Stereo Mini Jack |
| EXTERNAL CONTROL | RS-232 | RS232 (Option) |
| RJ-45 | RJ45(In/Out) | |
| ETK Port ( Thermal) | N/A | |
| ESK Port (IR, Ambient) | IR control | |
| ENVIRONMENT | Operating Temperature. | -20℃~50℃ |
| Storage Temperature | -30℃~70℃ | |
| Humidity | 10-95%(Non-condensing) | |
| INTERNAL PLAYER | Operating System | Android 11.0 or above |
| Processor | Quad-core Cortex-A55 | |
| Clock Speed | Up to 2.0GHz | |
| Main Memory lnterface | 2GB LPDDR4 1.5GHz 64bit | |
| Grapics | Supports OpenGL ES | |
| Storage | 16GB | |
| Multimedia | 4KP60 H.265/H.264/VP9 video decoder 1080P60 H.264/H.265 video encode |
|
| Wireless Function | Wi-Fi 2.4/5.0GHz 802.11 a/b/g/n/ac/ax | |
| CERTIFICATION | CE/RoHS/FCC | |
