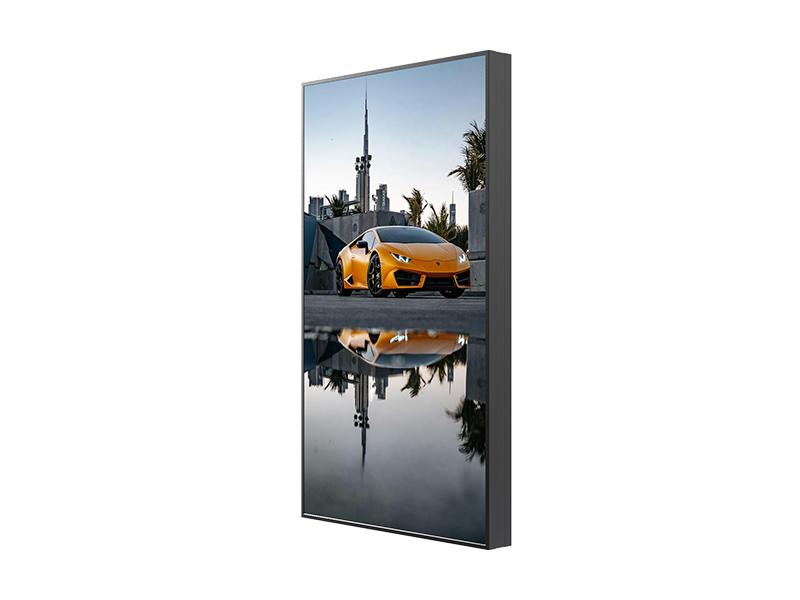

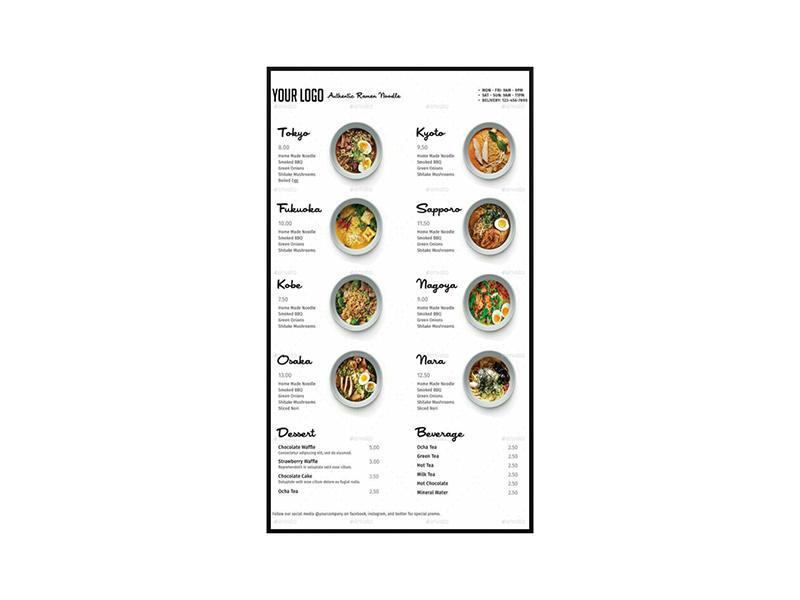

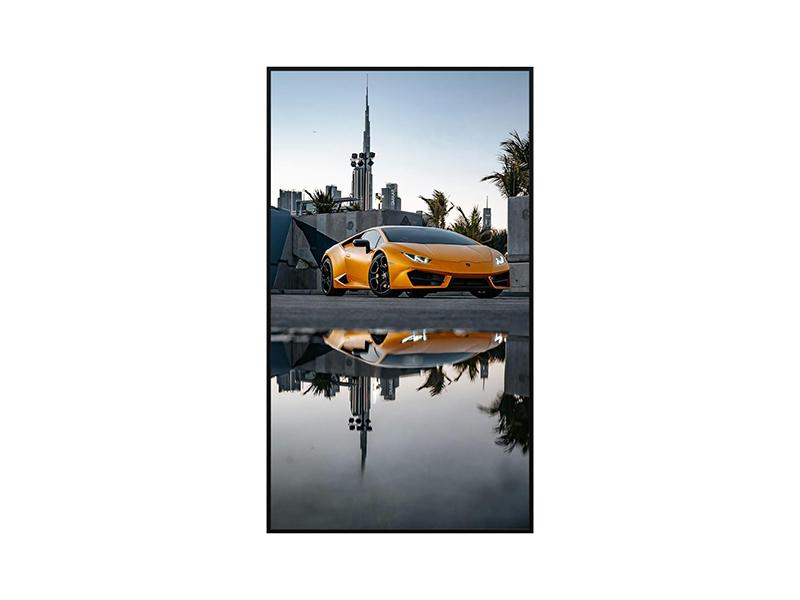

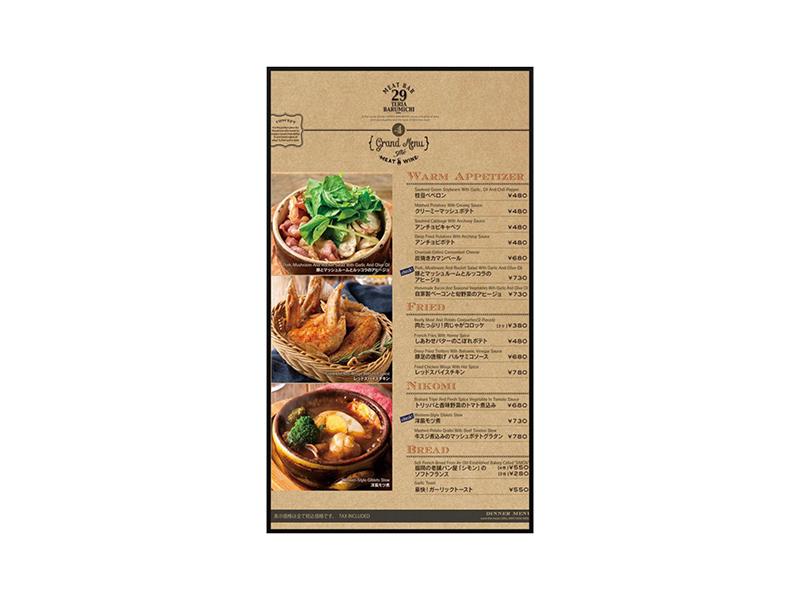

86" Hanging Double Sided Digital Advertising Screen

86" Hanging Double Sided Digital Advertising Screen

Products Features


Professional window digital signage series adopts high brightness panel that are visible in sunlight. And the brightness will be automatically adjusted according to the ambient light.

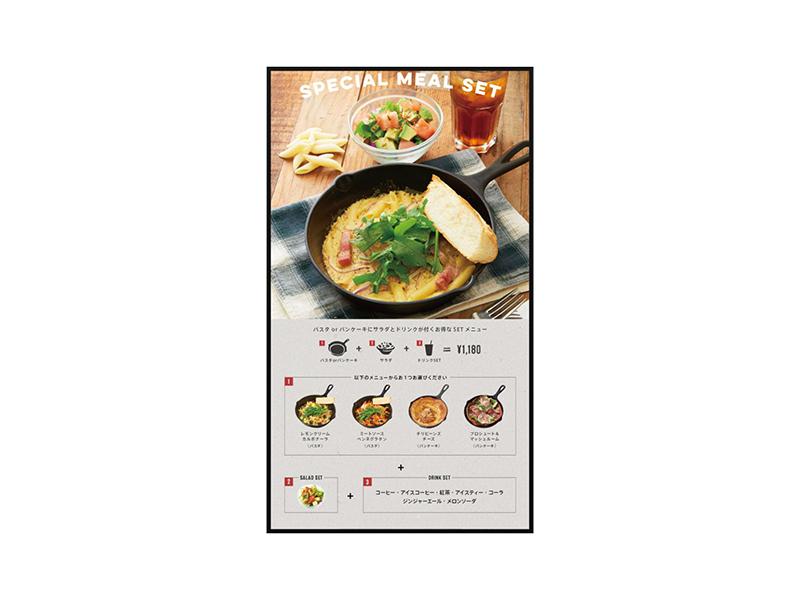

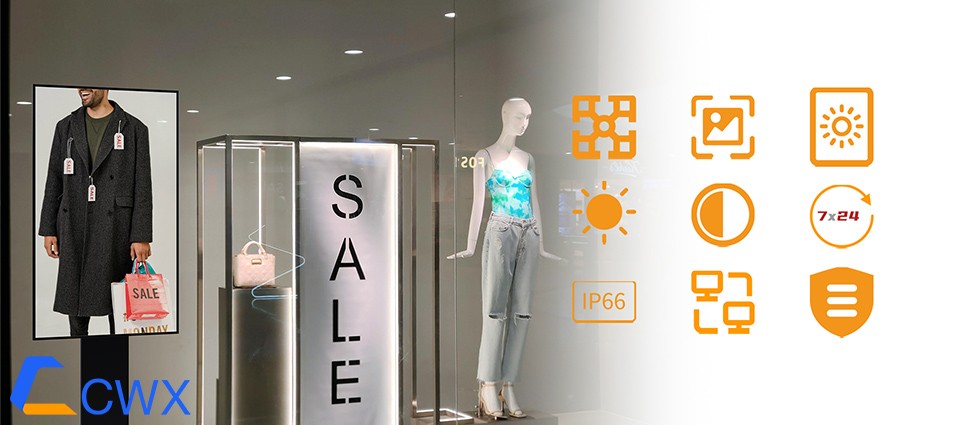

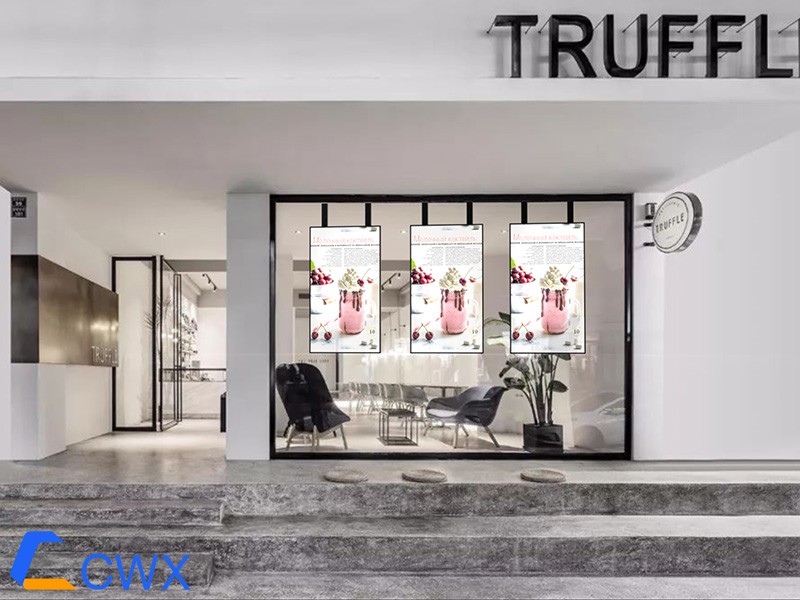

This series provides universal designs suitable for a wide range of commercial purposes. It is designed to be visible under high sunlight conditions and is a multifunctional optimization solution for advertising, information display, and even menu boards. The best way to attract more customers is to install them on the windows of restaurants and shopping centers.







Advantage



1. Lamination: higher color reproduction rate and low power consumption.



2. Screen-to-body ratio≥95%



3. Easy to maintain.



4. No need to replace the dust filter.





MODEL CWX860WD

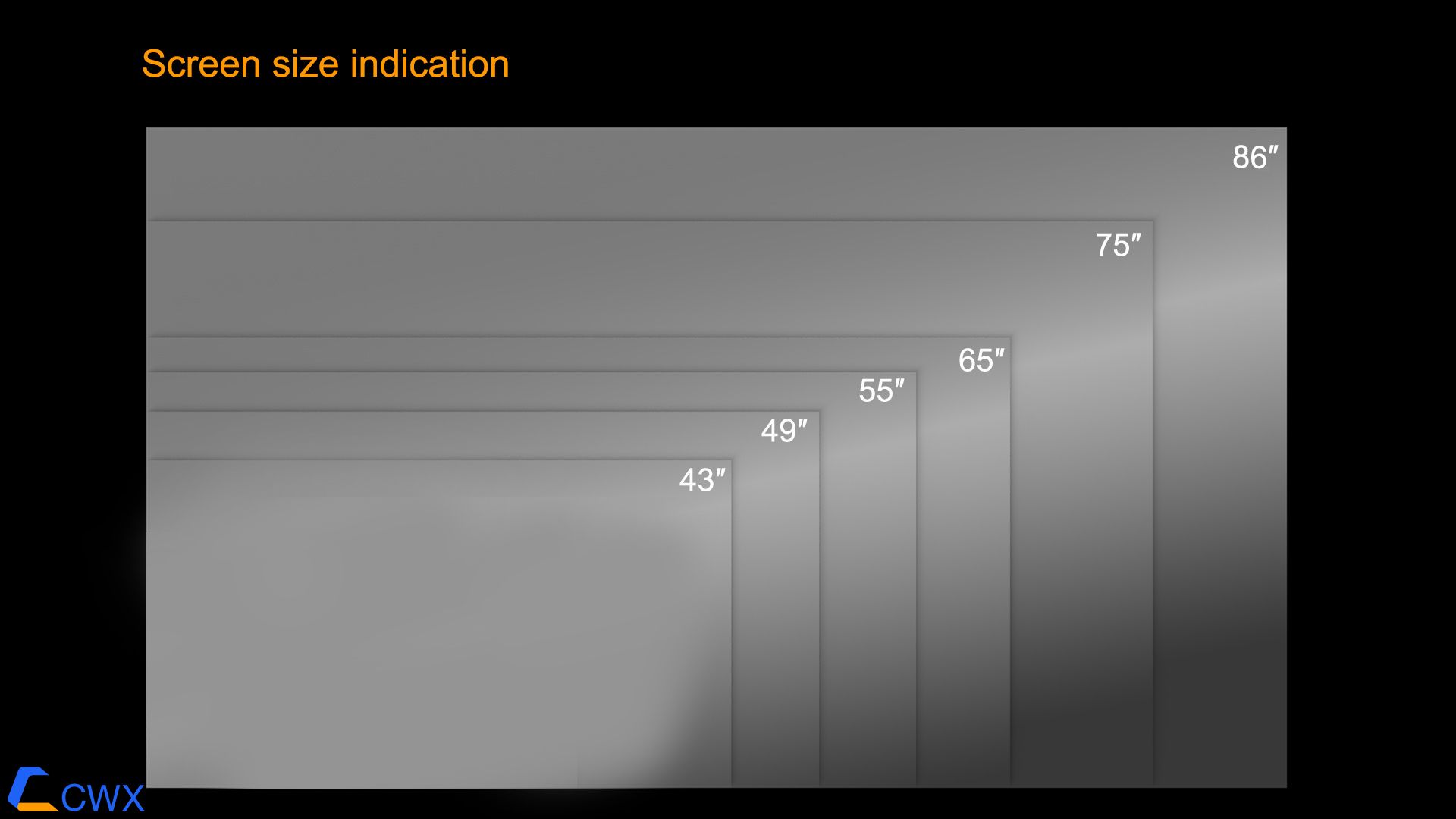

PANEL LCD Panel Size 86 inch
Native Resolution 3840×2160
Brightness 3500+1000 nits
Color Depth 1.07B
Contrast Ratio 1200:1
Response Time (Typ.) 8s
Viewing Angle 178/178
Light Lifetime (Typ.) 50000 Hours
Viewable With Polarized Lenses Yes

POWER Power Supply AC 100-240V 50/60Hz
Rated Voltage AC 110V/230V
Power Consumption (Max.) 1500W
Power Saving Mode 0.5W
AC Out N/A

MECHANICAL SPECS Bezel Width (T/B/L/R) mm 16.8/16.8/16.8/16.8
Cabinet Color Default Black
Monitor Dimension (LxHxD) mm 1104×1933×120
Monitor Weight 140kg
Orientation Portrait
VESA Mounting (LxH) mm N/A
Carrying Handles Yes

FEATURE Language Default English
Support SNMP (Up to V3.0) N/A
lmage Retention Protection Yes
Auto Orientation Sensor N/A
Ambient Light Sensor N/A
Power On/Off Scheduling Yes
OSD Menu Rotation Yes

INPUT HDMI 2.0(HDCP 2.3) HDMI input 4K 30/60Hz
DisplayPort 1.2 DP input 4K 60Hz
USB 3.0 USB 3.0×2
Micro SD Slot Supports up to 32GB

OUTPUT Audio Stereo Mini Jack

EXTERNAL CONTROL RS-232 RS232 (Option)
RJ-45 RJ45(In/Out)
ETK Port ( Thermal) N/A
ESK Port (IR, Ambient) IR control

ENVIRONMENT Operating Temperature. -20~50
Storage Temperature -30~70
Humidity 10-95%(Non-condensing)

INTERNAL   PLAYER Operating System Android 11.0 or above
Processor Quad-core Cortex-A55
Clock Speed Up to 2.0GHz
Main Memory lnterface 2GB LPDDR4 1.5GHz 64bit
Grapics Supports OpenGL ES
Storage 16GB
Multimedia 4KP60 H.265/H.264/VP9 video decoder
1080P60 H.264/H.265 video encode
Wireless Function Wi-Fi 2.4/5.0GHz  802.11 a/b/g/n/ac/ax

CERTIFICATION CE/RoHS/FCC
